Traditional Heat Meets Infrared Comfort

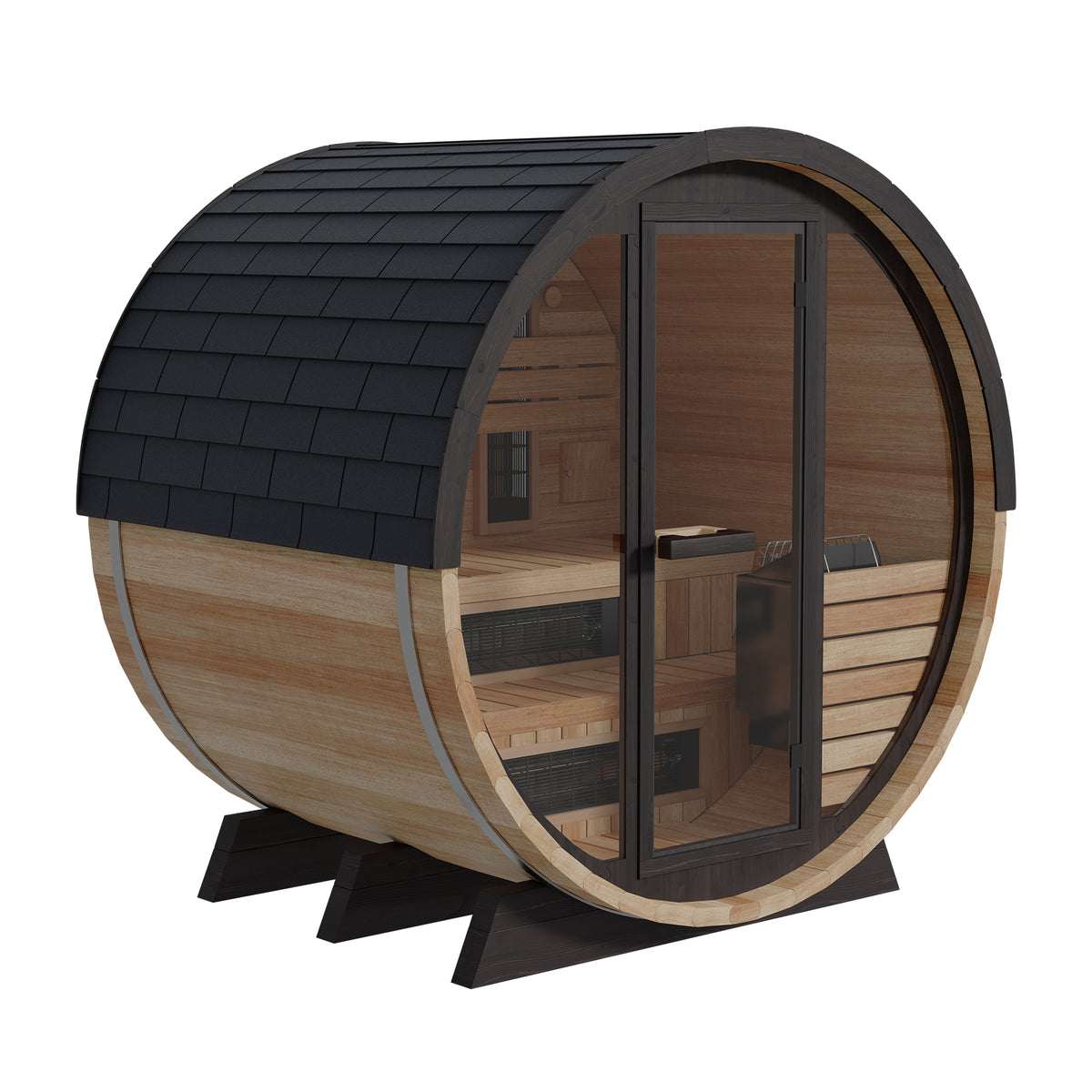

The Finnmark FD-7 Thermo-Aspen Combination Barrel Sauna brings together Spectrum Plus™ infrared panels and a traditional Finnish stone heater in an outdoor sauna designed for up to four people.
Engineered to operate both heating systems together, the FD-7 pairs infrared warmth with the familiar sauna ritual of pouring water over hot stones. Finnmark lists a maximum infrared temperature of 170°F and temperatures up to 185°F when a traditional stone heater is used.
Sauna Kit — On-Site Assembly Required
The Finnmark FD-7 is supplied as a sauna kit requiring on-site assembly and professional installation. It does not arrive fully assembled. A compatible traditional sauna heater is required and sold separately.

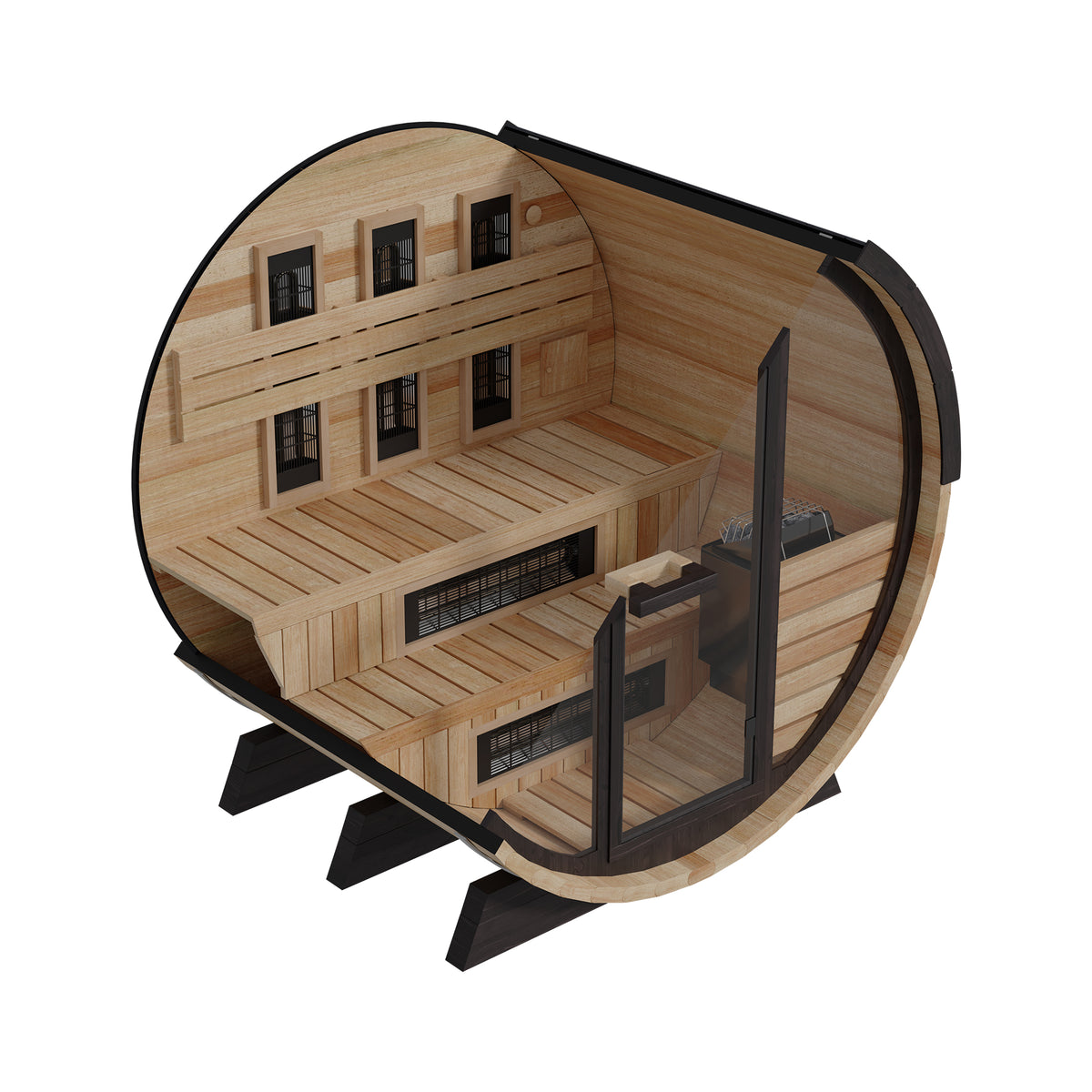

Thermo-Aspen Construction

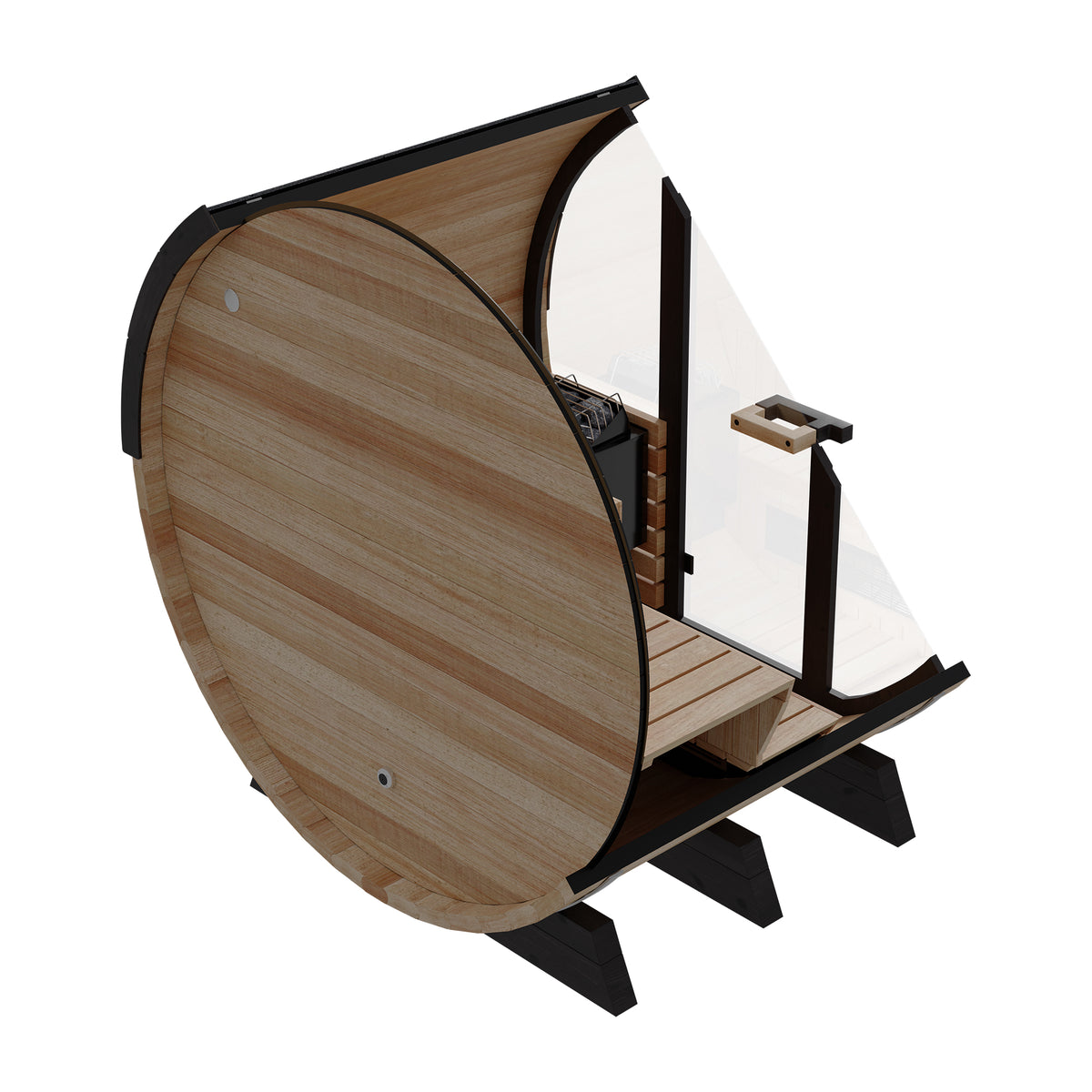

Thermally modified European Aspen forms the sauna’s interior and exterior, with substantial 1.5-inch staves. Clear-grade Western Canadian Cedar benches and frame complement the Thermo-Aspen construction, while upper and lower benches provide two seating levels.

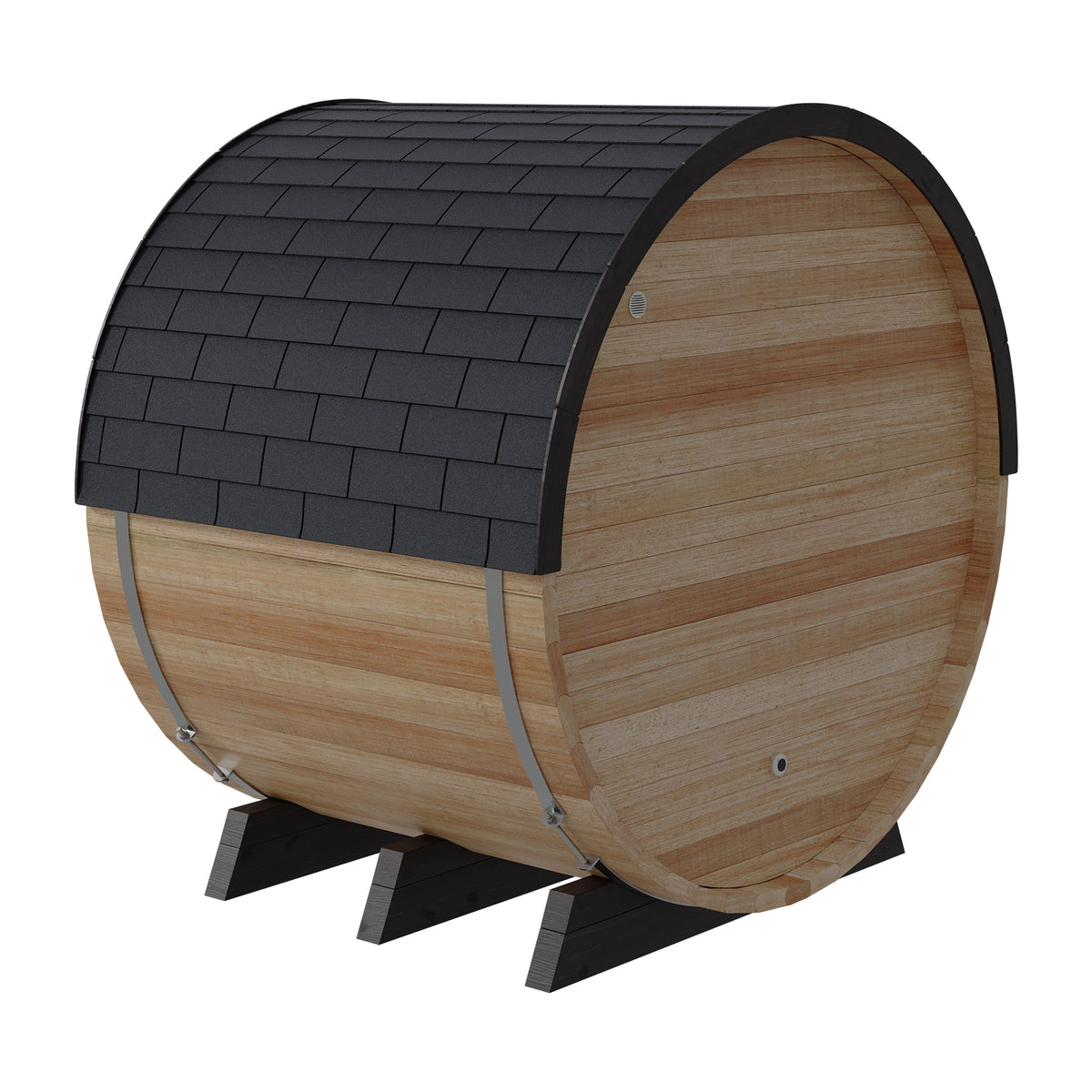

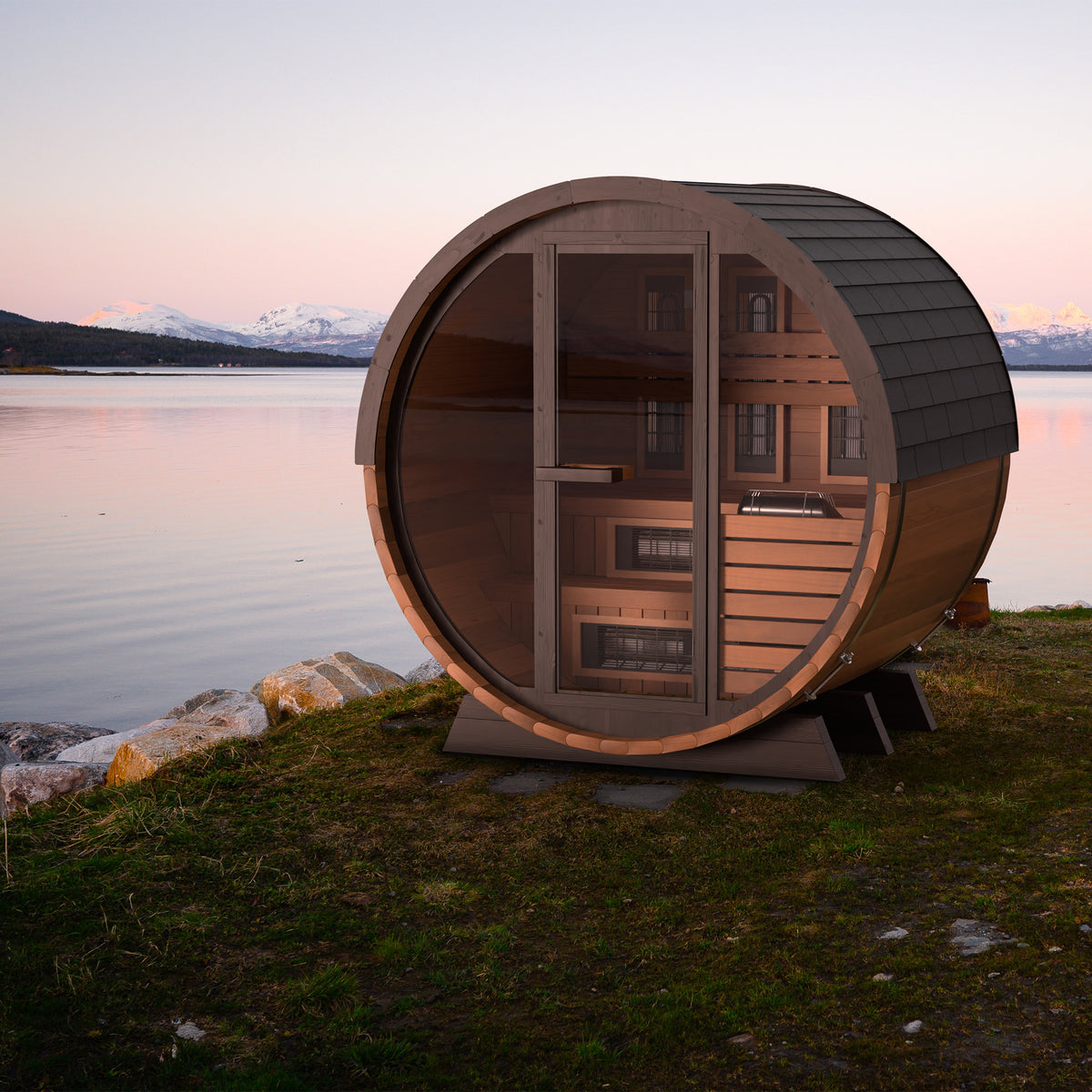

Designed for Outdoor Use
An 8 mm glass assembly with a rubber gasket complements the barrel design. Shingle roof protection, three stainless steel straps, and three Shou Sugi Ban treated supports complete the construction.

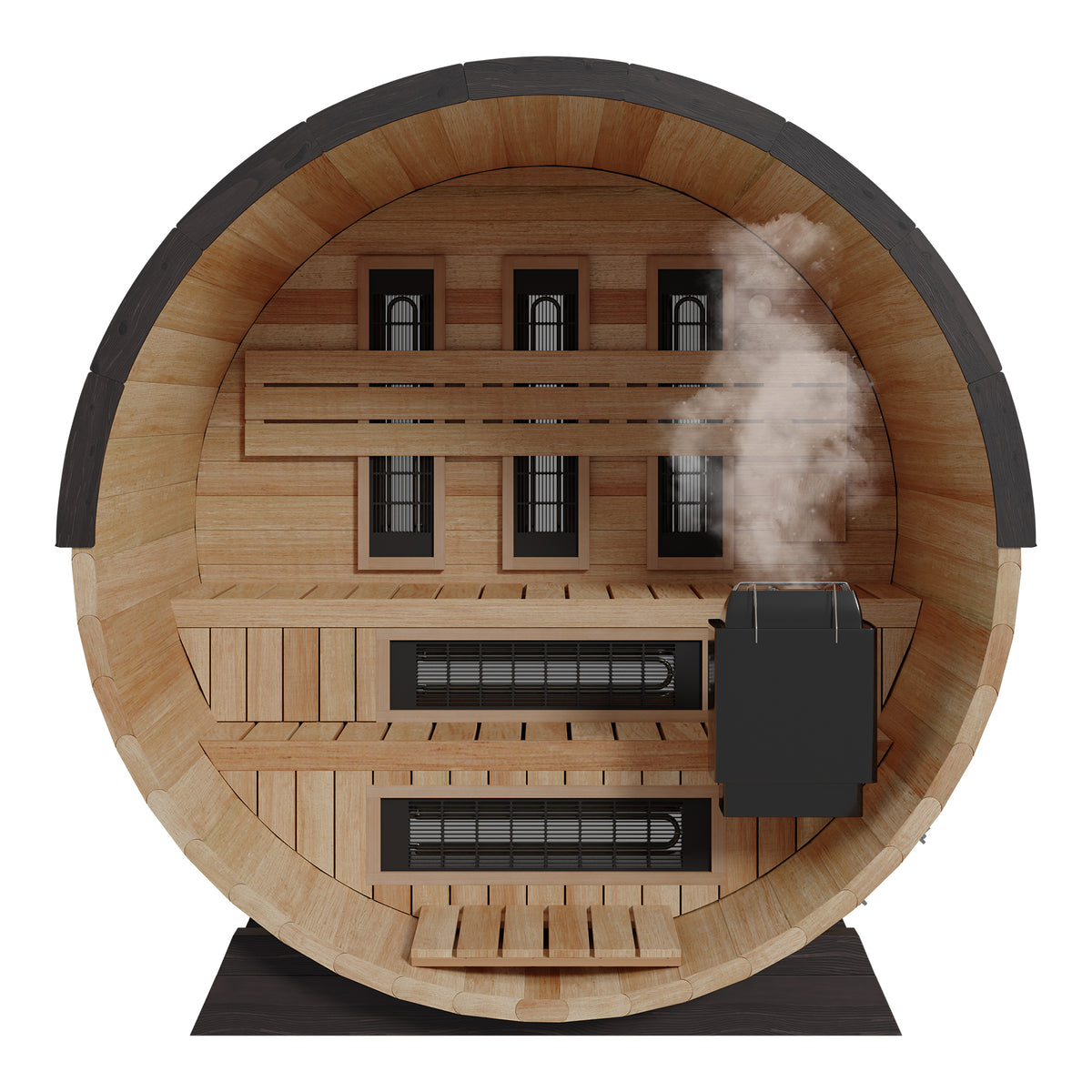

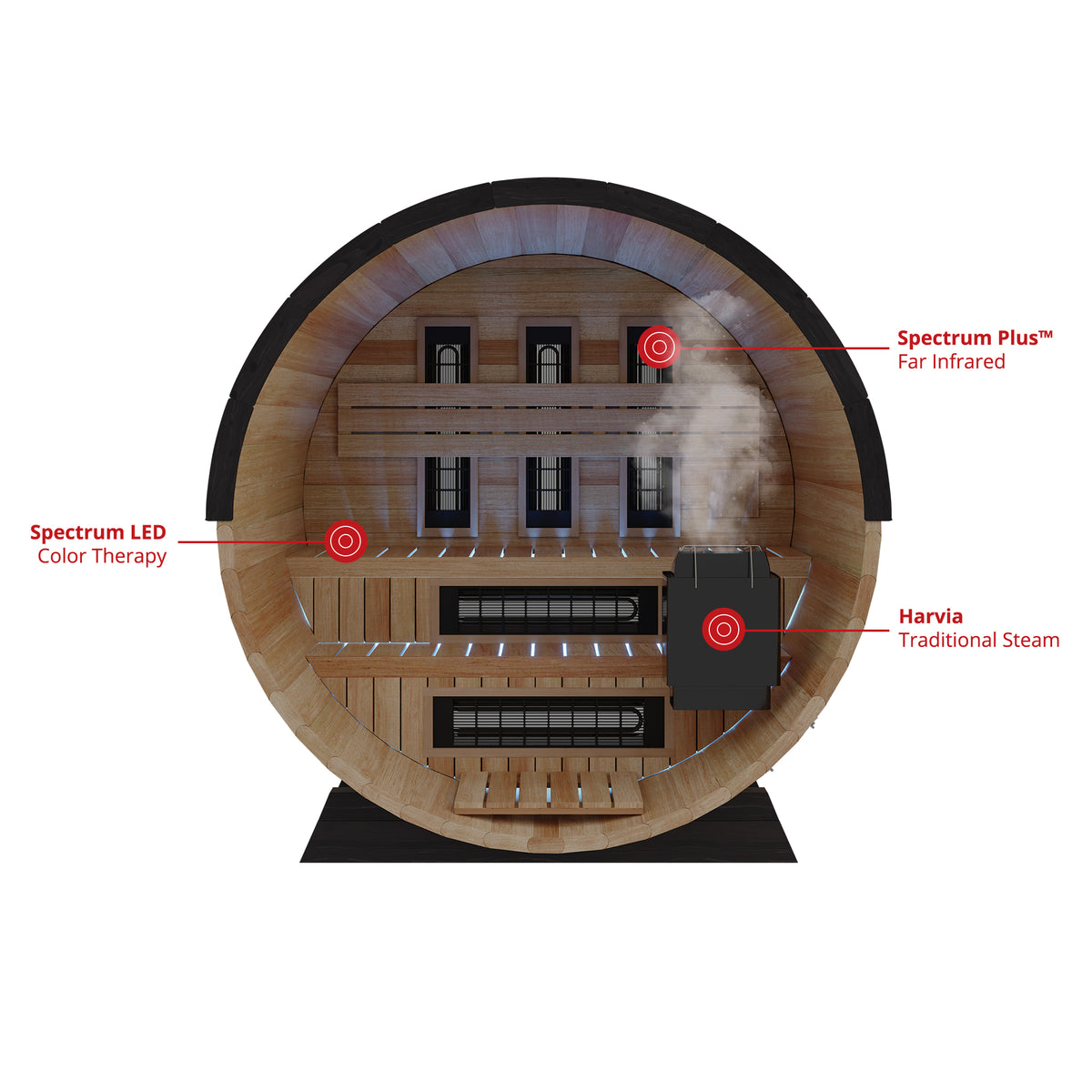

Integrated Infrared Heating
Five Spectrum Plus™ infrared heaters provide a combined output of 1,750 watts. The infrared system requires a 120 V, 15 A connection with a NEMA 5-15P plug.
Traditional Heater Sold Separately
A compatible traditional sauna heater is required and sold separately. Its electrical requirements are separate from those of the infrared system.

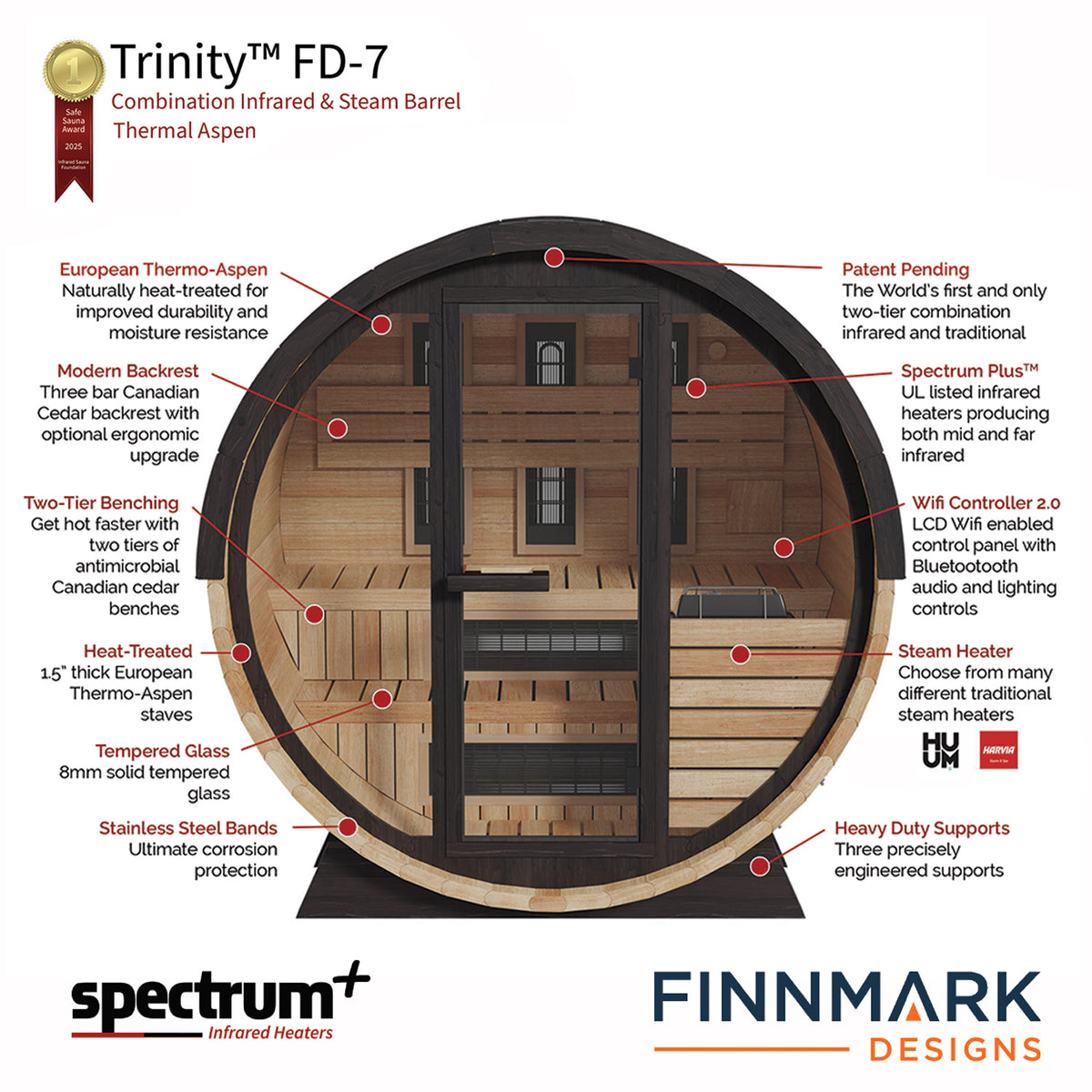

Features
Thermo-Aspen Construction
Thermally modified European Aspen interior and exterior with substantial 1.5-inch-thick staves.
Cedar Benches and Frame
Clear-grade Western Canadian Cedar benches and frame, with a dual-level bench system.
Spectrum Plus™ Infrared Heating
Five Spectrum Plus™ infrared heaters deliver 1,750 watts of combined output. The supplier identifies the heaters as UL listed.
Wi-Fi Touchscreen Controller
Built-in LCD touchscreen controller with Wi-Fi connectivity.
Under-Bench RGB Lighting
Integrated RGB LED lighting beneath the benches.

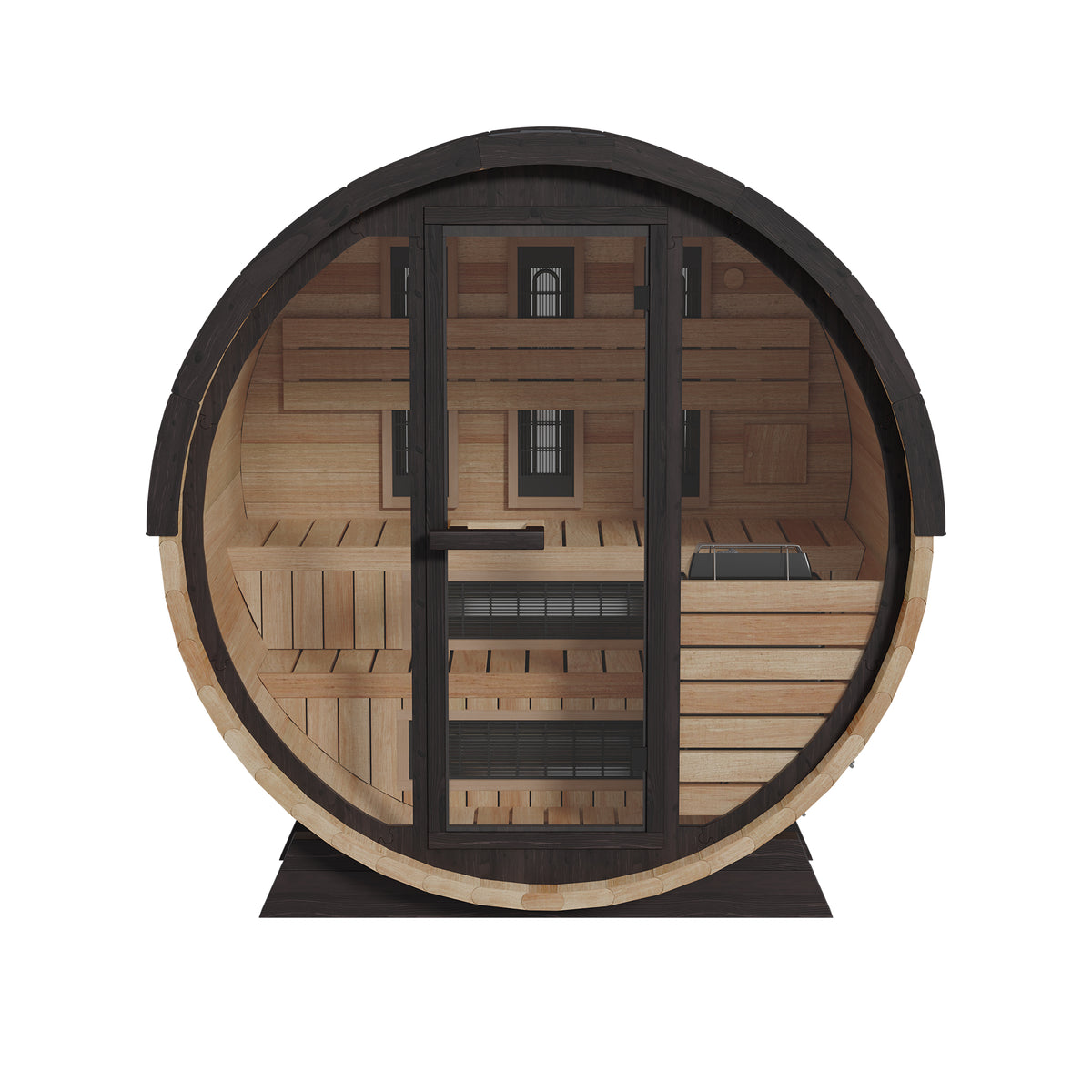

Tempered Glass Door and Windows
8 mm tempered glass door and windows with a rubber gasket.

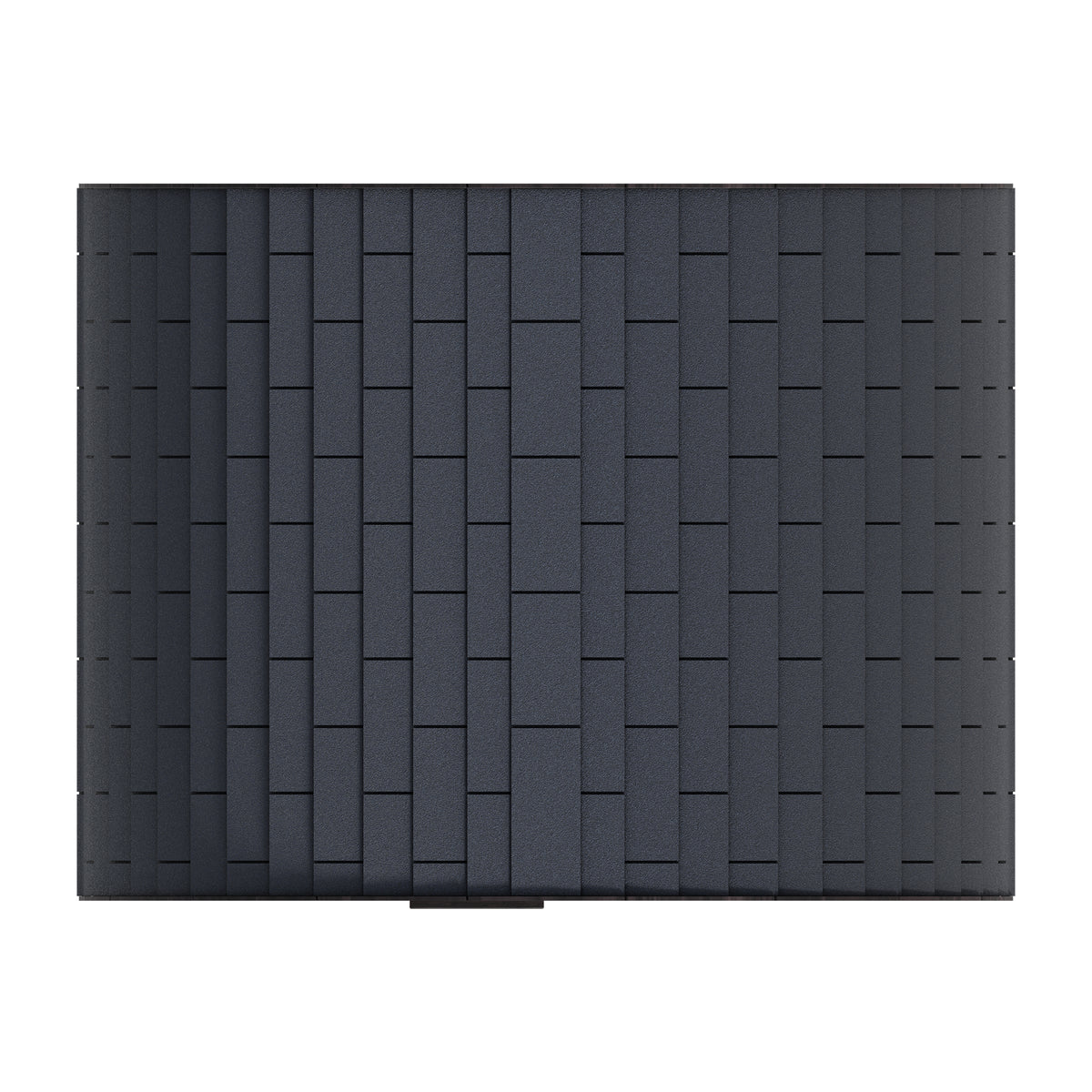

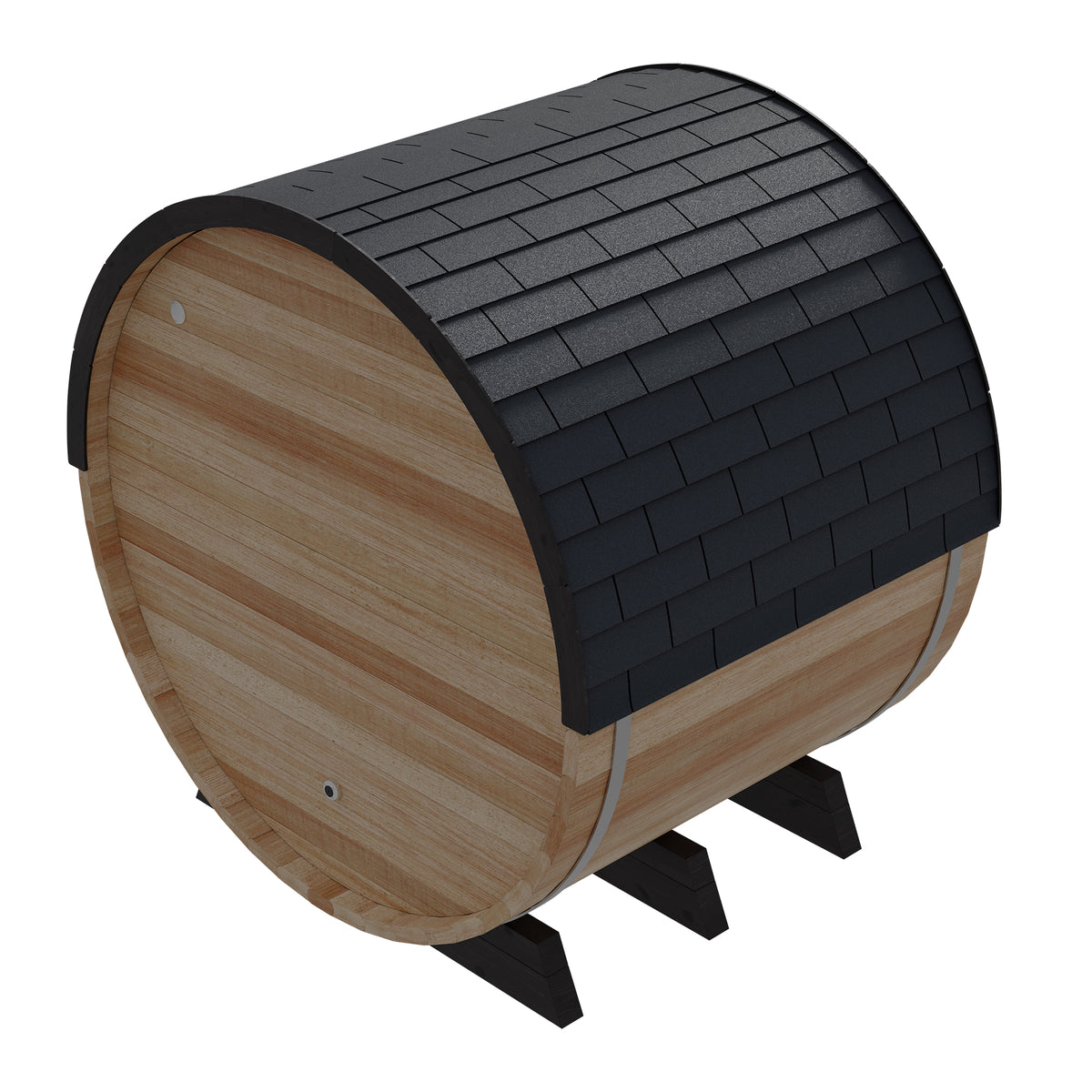

Outdoor Roof Protection

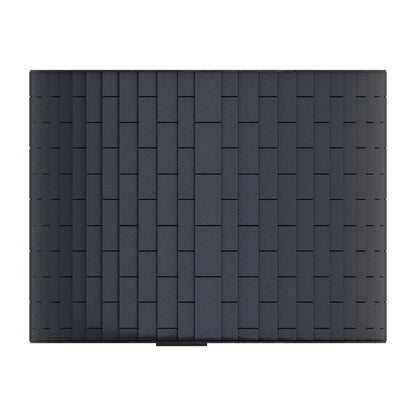

Shingle roof with a protective barrier.

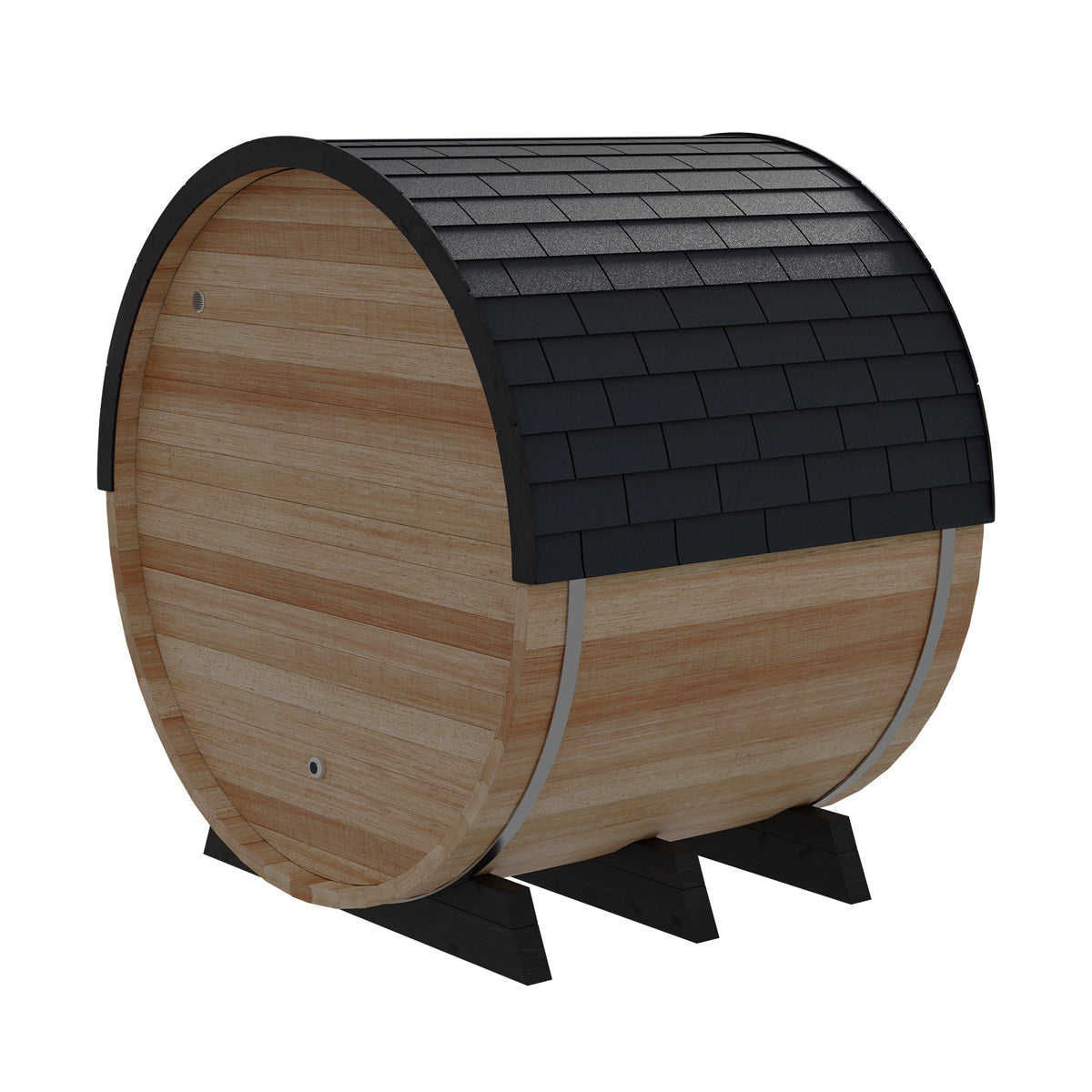

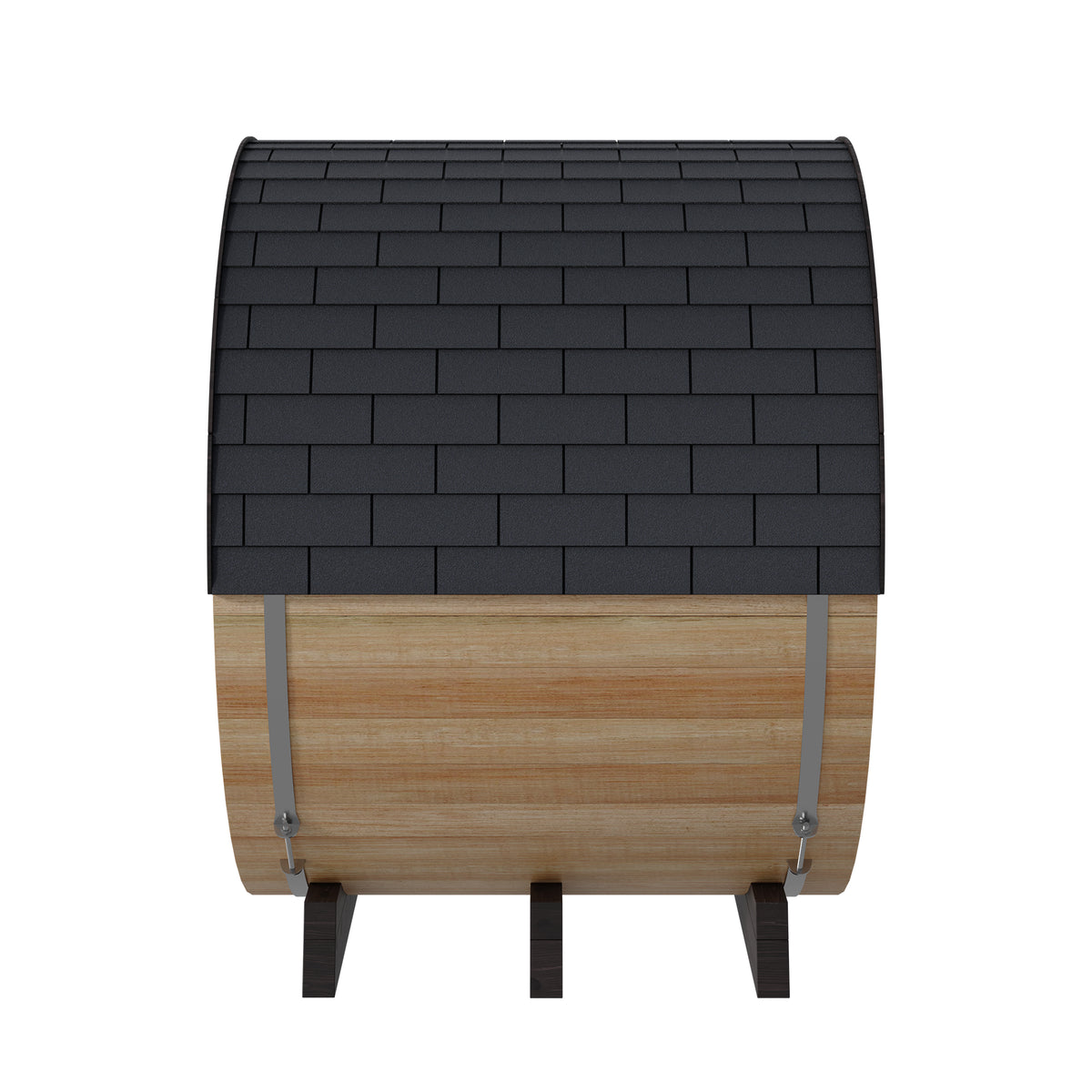

Reinforced Barrel Construction
Three stainless steel straps and three Shou Sugi Ban treated supports.
Traditional Sauna Heater Required
A compatible traditional sauna heater is required and sold separately.
Included
Sauna Construction Components
Slats, front trim, front panel, back panel, metal bands, and metal band clamps.
Roof Components
Shingles and insulating layer.
Lighting and Electrical Components
LED under-bench light, male light cable, power cord, outdoor power cover, and outdoor power cover screws.
Assembly Hardware
Sauna body screws, bench screws, duckboard screws, screw cover, and additional screws.
Additional Included Items
Handle, drain, basic level, and pencil.
Specifications
Sauna Construction
ModelFD-7
Exterior MaterialThermally Modified European Aspen
Interior MaterialThermally Modified European Aspen
Bench MaterialClear Grade Western Canadian Cedar
Frame MaterialClear Grade Western Canadian Cedar
Glass Thickness8 mm with Rubber Gasket
Stave Thickness1.5″ (3.8 cm)
Roof ProtectionShingles
VentilationDisc
Straps3 Stainless Steel
Supports3 Shou Sugi Ban Treated
Dimensions and Weight
Interior Dimensions72″ W × 66″ D × 72″ H
(182.9 × 167.6 × 182.9 cm)
Exterior Dimensions75″ W × 75″ D × 79″ H
(190.5 × 190.5 × 200.7 cm)
Room Volume135 ft³ (3.8 m³)
Door Dimensions24″ W × 59″ H
(61 × 149.9 cm)
Upper Bench Dimensions72″ W × 24″ D
(182.9 × 61 cm)
Lower Bench Dimensions60.5″ W × 16″ D
(153.7 × 40.6 cm)
Assembled Weight830 lb (376.5 kg)
Shipping Dimensions60″ W × 80″ D × 80″ H
(152.4 × 203.2 × 203.2 cm)
Shipping Weight1,300 lb (589.7 kg)
Infrared Heating and Electrical
Infrared Heaters5 Spectrum Plus™
Wattage per Infrared Heater350 W
Total Infrared Wattage1,750 W
Infrared Electrical Requirements120 V, 15 A
Infrared Electrical ConnectionNEMA 5-15P
Infrared Power Cord Length9 ft
EMF RatingVery Low, Tested by NTS*
Maximum Infrared Temperature170°F
Maximum Temperature with Traditional Heater185°F
Traditional Sauna HeaterRequired and Sold Separately
Warranty
Spectrum Plus™ Heater WarrantyLifetime*
Sauna Warranty5 Year Limited*
Electrical specifications apply to the infrared system only. The required traditional sauna heater has separate electrical requirements.
*EMF rating and warranty summaries are supplier stated. The supplier describes Spectrum Plus™ coverage as “Unlimited Lifetime.” Coverage is subject to the manufacturer’s written warranty terms.
Shipping
-
Free curbside delivery is included with your purchase. On rare occasions, remote or complex delivery areas may not qualify for free curbside delivery.
- Due to the size and weight of this sauna, this item ships on a wooden pallet via freight carrier. The driver is responsible for curbside delivery and will lower the shipment to ground level.
-
Orders typically ship within 3 to 5 business days. Transit time is typically 5 to 10 business days, depending on your delivery location.
- A freight carrier will contact you to schedule a delivery appointment before your sauna arrives.
- Please inspect your shipment for visible damage before signing the delivery receipt. Note any damage on the delivery paperwork prior to accepting the shipment.
- Currently shipping to the contiguous United States only.
Installation & Warranty
Professional Installation
The Finnmark FD-7 requires on-site assembly and professional installation. The installation manual specifies a minimum of two physically able installers.
Site Preparation
Install the sauna on a flat, level surface with adequate structural support. Finnmark lists concrete, gravel, and wood decking as acceptable foundations. When installing over grass or organic ground, use pavers or flagstone beneath the supports to prevent sinking. Provide appropriate drainage and account for local weather conditions.
Electrical Installation
The infrared system requires 120 V, 15 A service with a NEMA 5-15P connection. These specifications apply only to the infrared system. The required traditional sauna heater is sold separately and has its own electrical requirements. All wiring must be completed by a licensed electrician in accordance with applicable codes and the equipment manufacturers’ instructions.
Outdoor Protection and Maintenance
Follow the manual’s weather-protection requirements, including applying wood preservative to all exterior surfaces immediately after installation, including doors and windows. Improper installation, inadequate weather protection, and failure to follow maintenance requirements may affect warranty coverage.
Manufacturer Warranty
The supplied Finnmark warranty lists the following coverage for outdoor residential use:
Wood Sauna Cabin
5 years.
Controls and Power Supply
5 years.
Spectrum Plus™ Infrared Heaters
Lifetime coverage.
LED Lighting
10 years.
Warranty Conditions
Coverage applies to the original purchaser and requires installation according to the manufacturer’s instructions, proper maintenance, and use without damage, misuse, or abuse. Non-factory-installed components are excluded from the supplied Finnmark warranty. Refer to the traditional heater manufacturer for its separate warranty.
The supplied warranty was last updated December 12, 2022, and states that coverage may be changed on the quote or invoice. The manufacturer’s written terms and applicable purchase documents govern coverage.
