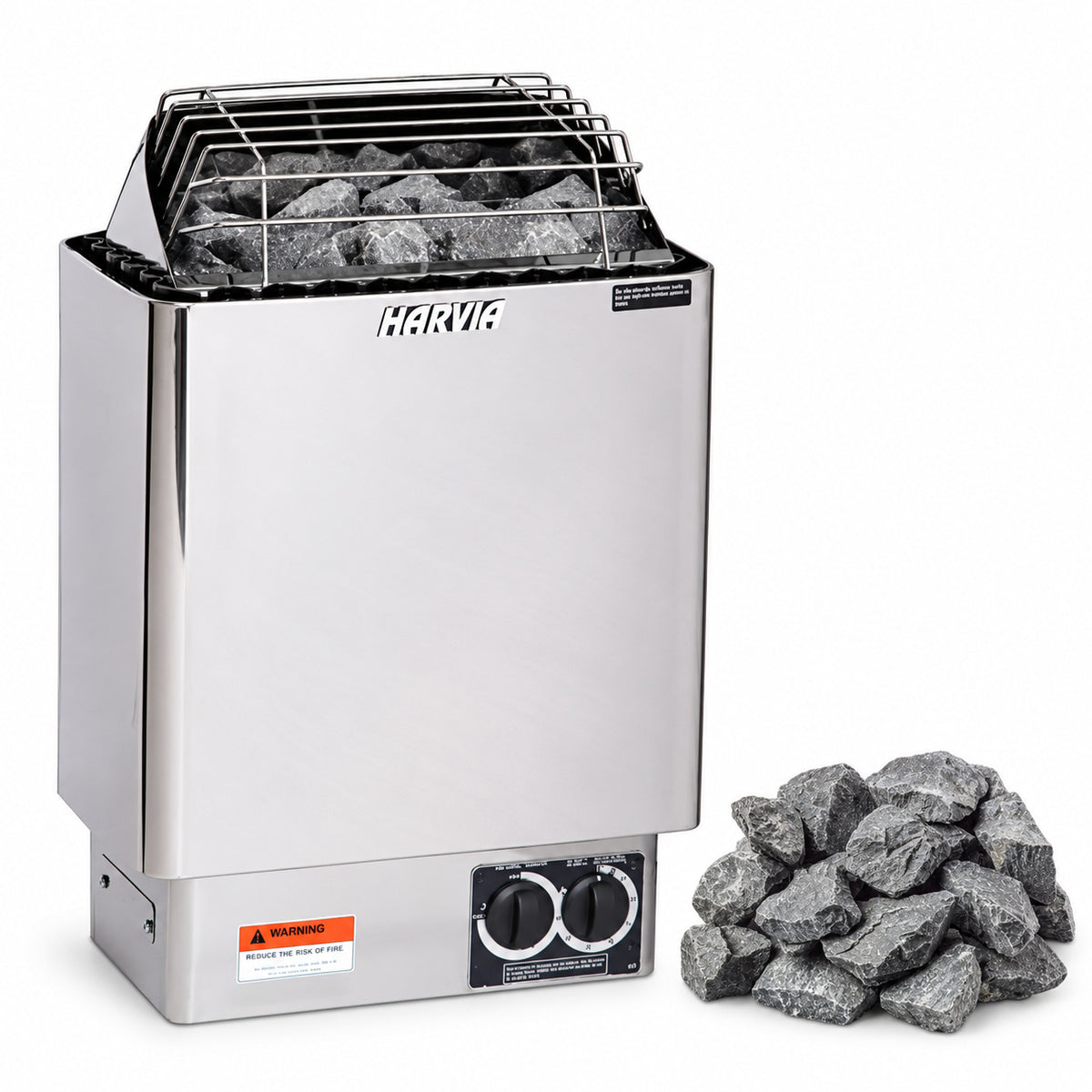

Harvia KIP45B Complete Heater Package

Harvia KIP45B Complete Heater Package
Create a warm, welcoming home sauna with the Harvia KIP45B 4.5 kW electric sauna heater package. This Finnish made, stainless steel wall mounted heater pairs built in time and temperature controls with one box of Harvia AC3000 sauna stones for rooms from 100 to 210 cubic feet.

Its polished finish and traditional proportions sit naturally beside timber sauna interiors. The controls are positioned at the base of the heater, keeping everyday operation close at hand, while split face stones bring the familiar warmth and steam of a traditional sauna.

Supplied for a 240 V, single phase installation, with the heater and stones ready for professional fitting. Permanent electrical connections, wall mounting, sensor placement and correct stone loading are required before use. Final sizing should account for glazing, insulation and the sauna’s installation requirements.

Built In Time & Temperature Controls
An integrated thermostat and 60-minute operating timer let you set your sauna session directly at the heater. A delayed start timer allows up to eight hours of preset time.

Made in Finland
A traditional wall mounted design combines a stainless steel exterior with serviceable heating elements for a lasting place in your home sauna.

Direct Stone to Element Contact
The heater’s 44 lb stone capacity places sauna stones around the heating elements for traditional heat and steam when water is applied according to Harvia’s instructions.

Compact Wall Mounted Form
A 16.1-inch-wide body keeps the heating equipment neatly against the sauna wall while allowing the required installation clearances.

Matched Sauna Stones
One box of Harvia AC3000 split face olivine diabase stones is included for the specified 44 lb stone load. Their angular form allows the installer to preserve airflow through the stone space.

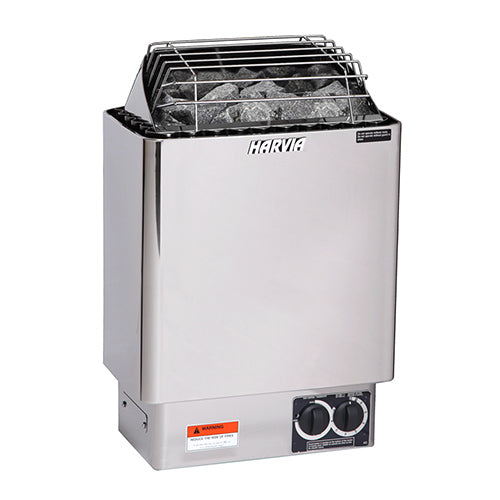

Harvia KIP45B 4.5 kW Sauna Heater
Part Number: JH45BU1UL
GTIN: 6417659027403

Stainless steel electric sauna heater with built in thermostat and timer, temperature sensor and cover, sensor wire trim pieces, mounting screws, caution and warning signs, and installation and operation manual.

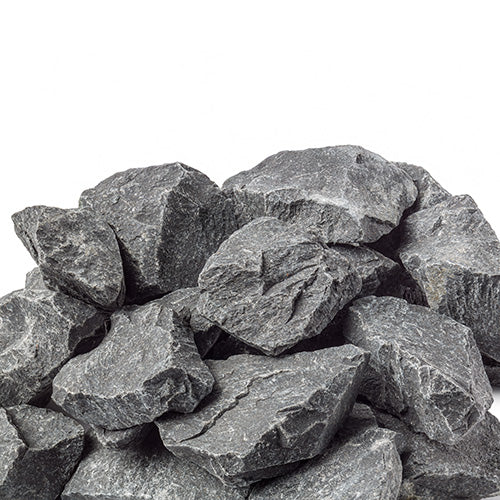

Harvia AC3000 Split Face Sauna Stones
Part Number: AC3000
GTIN: 6410082607952

One nominal 44 lb (20 kg) box of split face olivine diabase sauna stones, sized 2 to 4 inches (5–10 cm).

Installation Required
The heater and stones are supplied as components. Professional hardwiring, mounting, sensor installation and stone placement are required. Electrical field wiring, installation labor and any site specific protective railing are separate installation provisions.

No Additional Shipping When Purchased with a Sauna
When this heater package is purchased with a sauna on the same order, no additional heater shipping charge applies. Any applicable shipping charge for the sauna remains unchanged.

$495 Flat Rate Shipping When Purchased Separately
A flat shipping charge of $495 applies when this heater package is purchased without a sauna. Heater packages ordered separately or added through a later order do not qualify for the same order shipping benefit.

Delivery Area
Shipping is available within the contiguous United States only. We do not ship to Alaska, Hawaii, U.S. territories or international destinations.

Professional Electrical Installation
The KIP45B requires a permanent 240 V, single phase connection by an authorized, qualified electrician in accordance with the heater manual and applicable codes. It is not a plug in appliance. Final circuit design and field wiring must be determined for the specific installation.

Wall Mounting & Sensor Placement
Confirm that the sauna wall provides suitable support and maintain the heater, bench, ceiling and guardrail clearances in the current KIP B manual. The supplied temperature sensor is stored inside the heater’s electrical box and must be installed in the position specified by Harvia.

Controls & Sauna Preparation
Time and temperature controls are built into this KIP45B heater. The sauna must provide the required ventilation and safety provisions before operation. Check the heater and surrounding area before using the timer.

Correct Stone Placement
Rinse the AC3000 stones and load them individually according to the KIP B manual. Use approximately 44 lb of 2 to 4 inch stones, keep airflow open and avoid wedging stones between the elements. Refit the heater’s stone guard after loading.

Harvia Limited Warranty
Harvia’s current limited warranty provides two years of residential heater coverage, subject to its terms and conditions. Eligible residential electric heaters receive one additional year when properly registered with Harvia within 30 days of purchase, for up to three years in total.

Warranty Requirements
Proper installation, use and maintenance are required. Retain proof of purchase and professional electrical installation. Sauna stones and normal wear are excluded as described in the full warranty terms.

Manuals & Documents

Harvia KIP45B Installation & Operation Manual

Harvia KIP45B Data Sheet

Harvia Limited Warranty
