A premium 13kW sauna heater package featuring Saunum's patented air mixing technology, WiFi control, expansive stone capacity, and integrated Himalayan salt spheres for a distinctly different sauna experience.

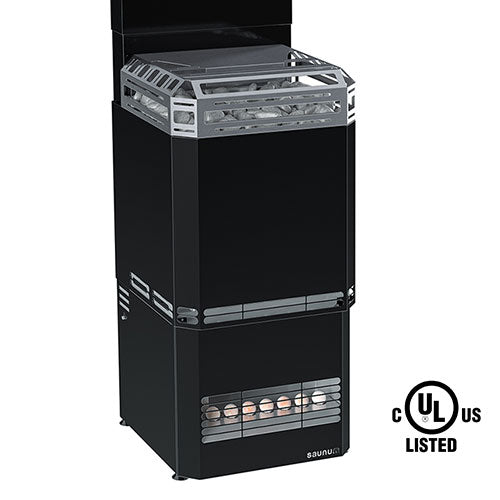

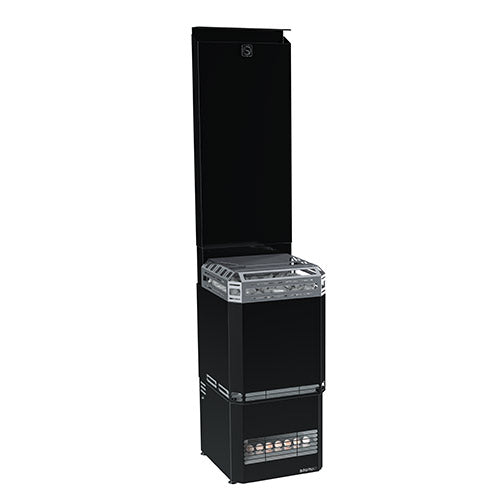

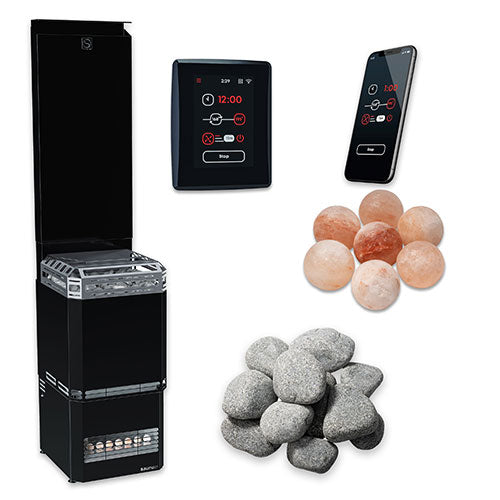

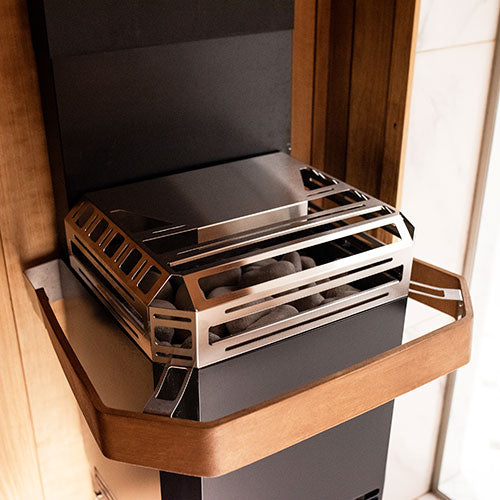

The Saunum Air L 13 Complete Heater Package combines the Air L 13 sauna heater with the AirIQ WiFi Control, sauna stones, and Himalayan salt spheres in one complete system designed for sauna rooms from 424 to 565 cubic feet.
Unlike a conventional sauna heater, the Air L 13 incorporates Saunum's patented air blending system to circulate heat throughout the sauna. Hotter air from near the ceiling is mixed with cooler air from lower in the room, helping create a more balanced temperature from head to toe and a softer, more consistent sauna environment.
A substantial 180 pound stone capacity supports long, gentle steam, while the integrated Himalayan salt reservoir introduces salt ions into the circulating air. The contemporary black steel heater brings a distinctly Scandinavian aesthetic to the sauna interior.
The included AirIQ WiFi Control provides convenient control from both the touchscreen display and Saunum mobile app, with programmable sauna profiles, weekly scheduling, temperature control, climate settings, and safety notifications.
Designed for 240V single phase operation and UL listed for safety, the Air L 13 offers a sophisticated alternative for G6 owners seeking a highly customizable sauna climate.
Features
Patented Air Mixing Technology
Saunum's innovative air blending system mixes hotter air from near the ceiling with cooler, oxygen rich air from lower in the sauna, helping create a more balanced temperature from head to toe and a more comfortable sauna environment.
Expansive Stone Capacity
The Air L 13 accommodates approximately 180 pounds of sauna stones, supporting softer, more even heat and long, satisfying steam when water is applied.

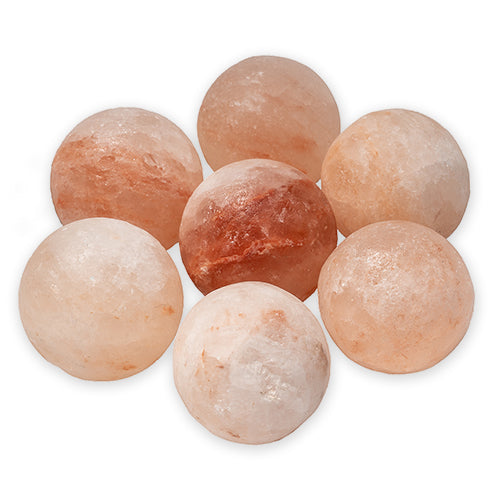

Integrated Himalayan Salt Reservoir
Himalayan salt spheres are positioned within the circulating air path, allowing salt ions to disperse throughout the sauna environment.

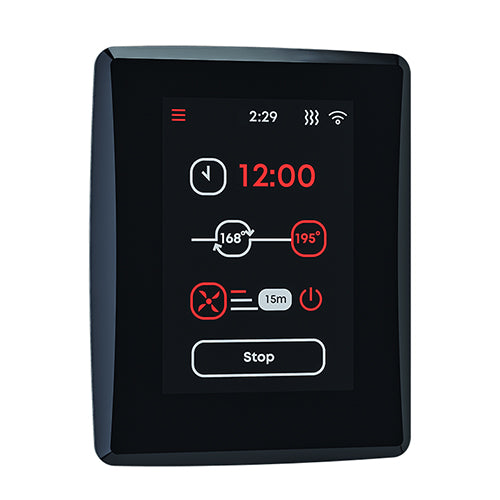

AirIQ WiFi Control
Manage temperature, operating time, sauna profiles, scheduling, and climate settings through the included soft touch AirIQ controller or the Saunum mobile app.
Three Sauna Experiences
Choose from Classic Nordic Steam Sauna, Humid Steam Rich Sauna, or Mild Relaxing Sauna settings to tailor heat, humidity, and air circulation to your preference.
Weekly Scheduling
Program sauna sessions by day, time, temperature, and sauna profile through the AirIQ WiFi system, allowing your sauna to be ready when you are.
Sauna Drying Function
After a steam session, Saunum's integrated air circulation system can help move air through the sauna to support drying of the interior.

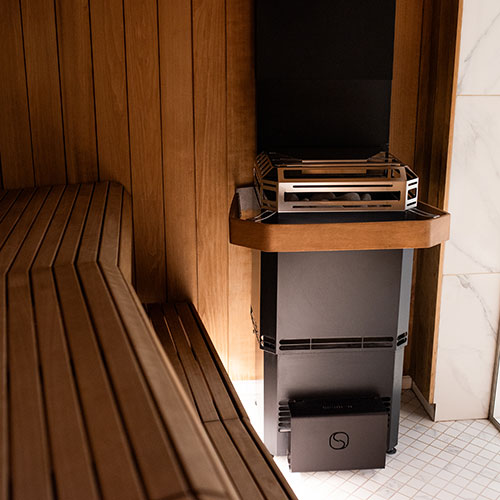

Scandinavian Design
The contemporary Nordic Black finish and architectural profile bring a distinctive Scandinavian aesthetic to the sauna interior.
Smart Home Connectivity
Modbus integration provides connectivity with compatible smart home systems.
Integrated Safety Features
Temperature monitoring, a door sensor, screen lock, child safety lock, and overheating protection are incorporated into the control system.
UL Listed
The Air L 13 system is UL listed and engineered to meet applicable safety requirements.
Designed for 424 to 565 Cubic Feet
The 12.9kW Air L 13 is designed for sauna rooms ranging from 424 to 565 cubic feet.
Optional Aromatherapy
Saunum's optional aromatherapy system can be added to introduce fragrance into the sauna steam for an additional sensory element.
Included
Saunum Air L 13 Sauna Heater
- Air L 13 sauna heater
- Himalayan salt spheres
- Himalayan salt tray
- Hot air intake components
- Stone basket
- Air outlet grille
- Cool air intake valve
- Protective grille
- Temperature sensor
- Installation and operation manual
- 2 year limited warranty for consumer use
Saunum AirIQ WiFi Control
- Digital soft touch WiFi control panel
- Wall mounting plate and fasteners
- Power unit
- Temperature sensor
- Door sensor
- Installation and operation manual
- 2 year limited warranty for consumer use
- 1 year limited warranty for commercial use

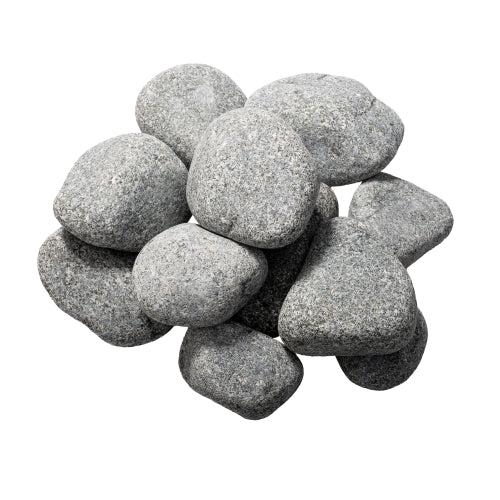

Sauna Stones
- 198 lbs of rounded, pre washed sauna stones
- 2" to 4" (5 to 10 cm)
Specifications
Heat Equalizing System
ModelAIR L 13
CertificationUL Listed
Heat and Steam Equalizer3 Speed, Whisper Quiet Operation
Ceiling Hot Air Intake17.72" × 4" (450.09 × 101.6 mm)

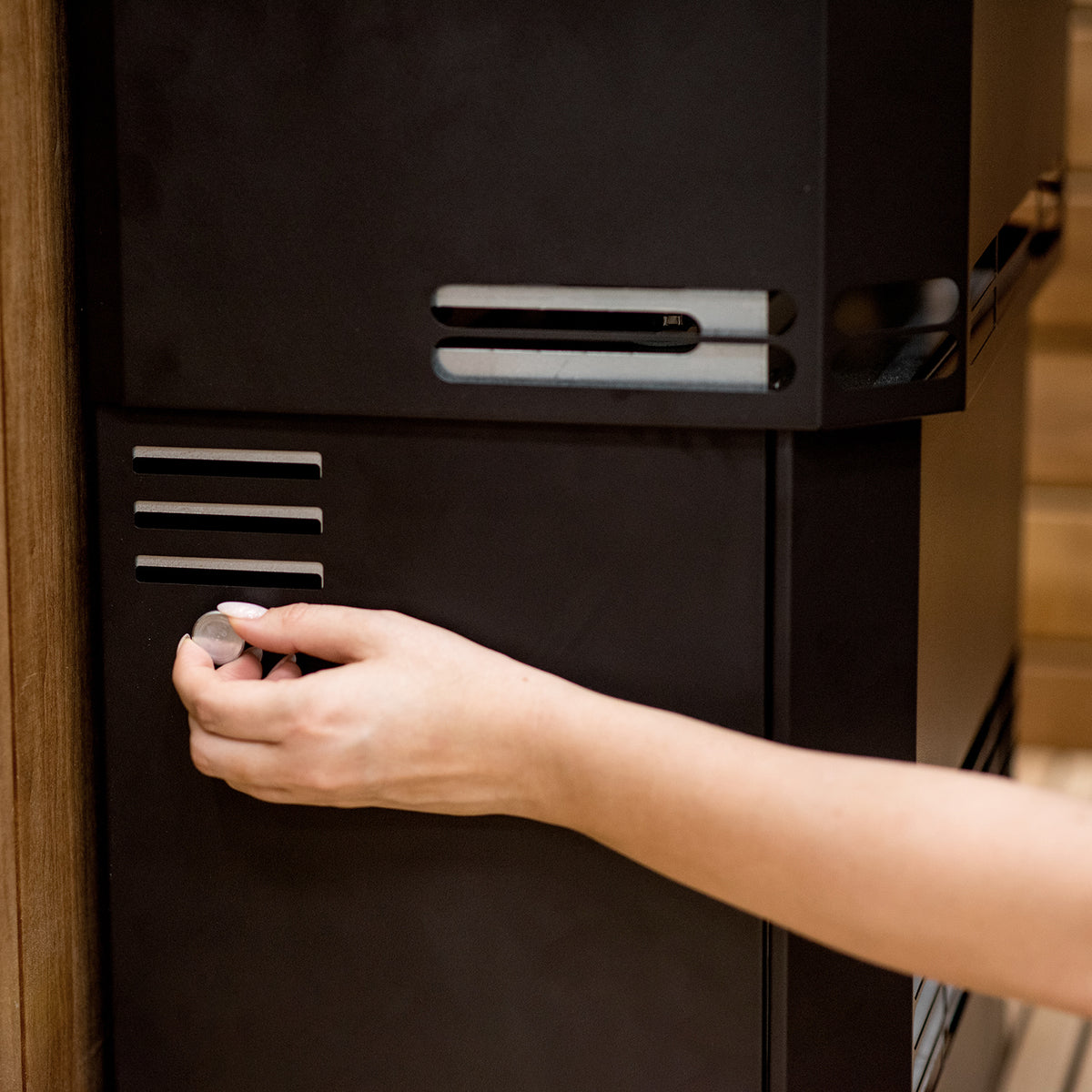

Cool Air IntakeAdjustable Side Mounted Valve, 12" (304.8 mm) Off Floor
Cool Air Intake Size2" × 2.75" (50.8 × 69.85 mm)
Blended Air Output4.31" × 14.13" (109.47 × 358.9 mm)
Himalayan Salt and Aroma TrayRemovable, Slotted
Salt and Aroma Tray Size16.5" × 4.5" (419.1 × 111.76 mm)
Sauna Heater System
ModelAIR L 13
CertificationUL Listed
Sauna Room Size424–565 cu. ft. (12–16 m³)
Power12.9 kW
Operating Voltage240 V
PhaseSingle
Amperage53.75 A
Circuit BreakerSee Installation and Operation Manual
Wire Size to Power Unit(2) #6 + N + G
Minimum Ceiling Height79" (2007 mm)
Stone Capacity180 lbs (80 kg)
Stone Size2"–4" (5–10 cm)
Heater Width18.3" (465 mm)
Heater Depth18.1" (460 mm)
Heater Height Including Telescopic Air Intake73"–95" (1850–2450 mm)
Heater Weight147 lbs (67 kg)
Shipping Weight with Stones345 lbs (156.5 kg)
AirIQ WiFi Control
ModelAIRIQ WI-FI
CertificationUL Listed
TypeDigital, Soft Touch
ResponseTactile with Haptic Feedback Technology
Language Selection16 Languages
WiFi CapabilityWiFi, App Based Updates and Operation
NotificationsSauna Ready, Heater Status, Open Door, Overheating Protection
Safety FeaturesAdmin Controls, Screen Lock, Door Sensor, Overheating Protection
ColorNordic Black
Heat Equalizing Control3 Speed Adjustability
Width3.3" (83.82 mm)
Depth0.8" (20.32 mm)
Height4.1" (104.14 mm)
IP RatingIP20
Minimum Temperature104°F (40°C)
Maximum Temperature194°F (90°C)
Duration Timer1–6 Hours
Display Panel Cable4 Conductor Cable, 20 AWG, 15 ft
Door Sensor and Cable Assembly2 Conductor Cable, 20 AWG, 9.83 ft
Door Sensor Probe1" L × 0.24" Diameter (25 × 6 mm)
Operating Temperature Range-4°F–145°F (-20°C–62°C)
ProgrammabilityWeekly Scheduling with 3 Programmable Sessions
Temperature SettingsFahrenheit or Celsius
Region SettingsNorth American and European Versions
Room Temperature SensorPre Mounted with Integrated 9.5 ft Cable
Installation requirements should be verified against the current Saunum Air L and AirIQ Installation and Operation Manuals before installation.
Shipping
NO ADDITIONAL SHIPPING WHEN PURCHASED WITH A COMPATIBLE SAUNA
When this heater package is purchased with a compatible sauna on the same order, the heater, control, sauna stones and included components ship with the sauna order at no additional shipping charge.
You will pay only the applicable shipping charge for the sauna.
$495 FLAT RATE SHIPPING WHEN PURCHASED SEPARATELY
Delivery Area
Shipping is available within the contiguous United States only. We do not currently ship to Alaska, Hawaii, U.S. territories or international destinations.
Important: The compatible sauna and heater package must be purchased together on the same order to waive the additional heater package shipping charge.
Installation & Warranty
Installation Requirements
Electrical Configuration 240 V / Single Phase
Heater Installation Floor Mount
Heater System Saunum Air L 13
Electrical Installation Qualified Licensed Electrician Required
Control Saunum AirIQ WiFi
Temperature & Door Sensors
The Saunum Air L 13 and AirIQ control system include temperature and door sensing components. Install all sensors according to the current Saunum installation instructions. Sensor placement and electrical connections must follow the applicable Saunum Air L and AirIQ installation manuals.
Professional Installation
Electrical installation must be completed by an authorized, qualified electrician in accordance with Saunum installation instructions and all applicable electrical codes and regulations. Proof of professional installation may be required for warranty coverage.
Review all installation documentation before installation and confirm electrical requirements, heater clearances, control placement, air intake requirements and sensor placement for your specific sauna.
Saunum Limited Warranty
Air L Heater Warranty 2 Years Consumer Use
AirIQ Control Warranty 2 Years Consumer Use
AirIQ Control Warranty 1 Year Commercial Use
Warranty coverage is subject to Saunum's current terms, installation requirements, proper use and exclusions. Refer to the applicable warranty documents below for complete coverage information.
