Harvia Spirit SP90E 9kW Complete Heater Package with Fenix WiFi Control & Stones

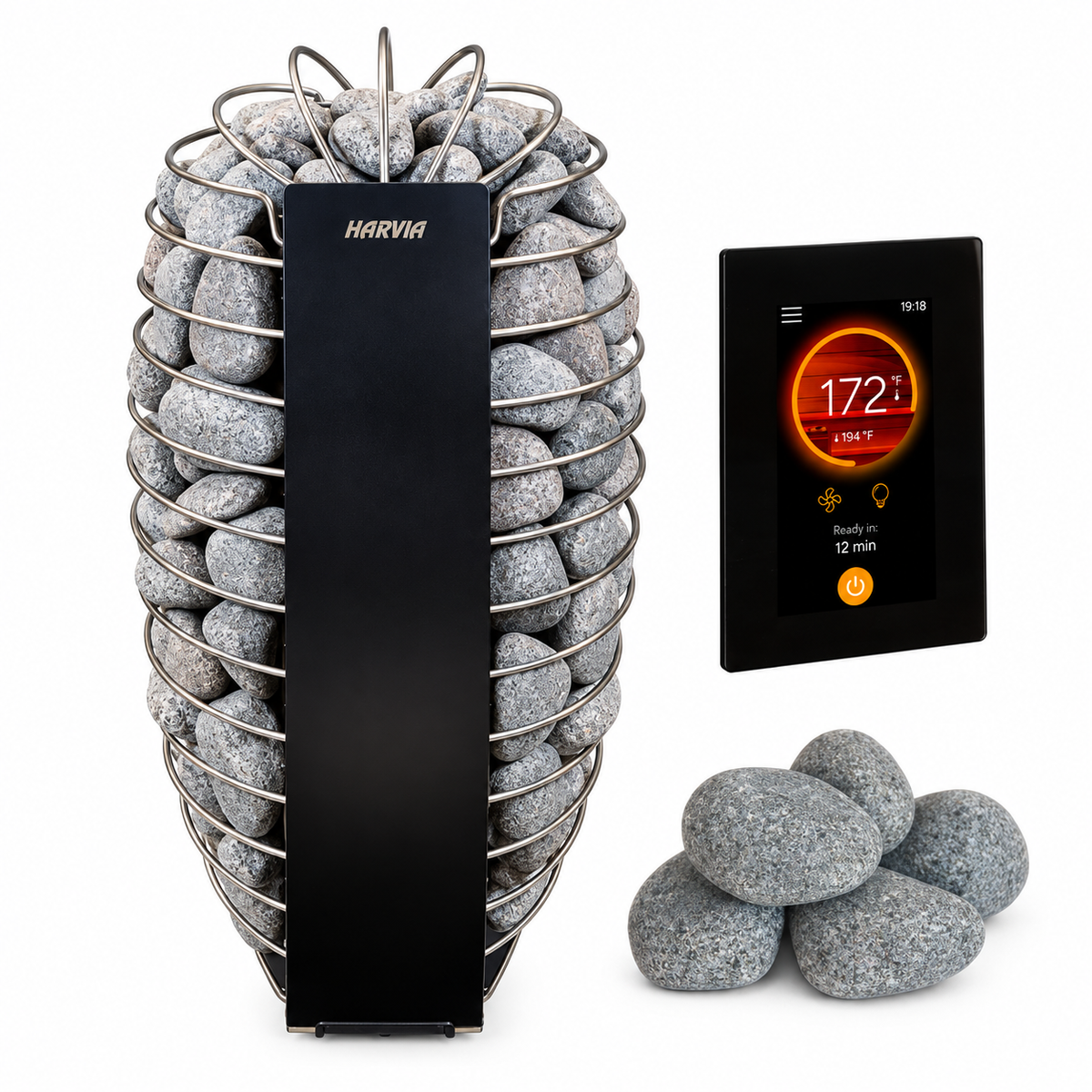

Harvia Spirit SP90E Complete Heater Package
Bring refined Finnish sauna design home with this 9 kW electric sauna heater package, pairing the Harvia Spirit SP90E with Fenix FX45 WiFi control and four boxes of rounded Harvia sauna stones. Designed for residential sauna rooms from 177 to 494 cubic feet.

Made in Finland, the Spirit combines a softly curved black exterior with the natural texture of exposed stones. Its wall mounted design creates an understated focal point, while the Fenix glass touchscreen provides intuitive control of temperature and operating time, with MyHarvia smartphone control and monitoring.

Supplied as components for a 240 V, single phase installation. Professional hardwiring, wall mounting, stone placement and the required protective heater fence must be arranged before use. Final heater selection should account for sauna volume, glazing, insulation and installation requirements.

9 kW Finnish Sauna Performance
Designed and made in Finland for residential sauna rooms from 177 to 494 cubic feet.

Softly Curved, Wall-Mounted Design
A sculpted black heater and visible rounded stones bring natural texture and a clean, modern finish to the sauna.

Traditional Heat & Gentle Steam
A 110 lb stone capacity provides substantial stone contact for water, while rounded olivine diabase stones encourage water to flow through the stone layers.

Fenix FX45 WiFi Control
A modern sauna control unit with Wi-Fi capabilities, allowing users to easily manage their sauna experience from a smartphone or tablet. It features an intuitive touch screen interface, enabling precise control of temperature, lighting, and operating time.

Smartphone Control with MyHarvia
WiFi connectivity supports remote control and monitoring from your smartphone or tablet through MyHarvia.

Intelligent Heating Management
Fenix learns the heater’s performance and provides a sauna temperature adjustment range of 104°F to 194°F.

Integrated Safety Features
The Spirit combines heater and room temperature monitoring with a built in safety function designed to prevent heating when an object is placed on top.

Matched Rounded Sauna Stones
Four boxes of Harvia R-991 stones provide approximately 132 lb of 2 to 4 inch rounded olivine diabase stones for the heater’s approximately 110 lb stone requirement.

Flexible Control Panel Placement
The Fenix panel can be surface or flush mounted in an approved location inside or outside the sauna. The separate power unit must be installed outside the sauna according to its manual.

Harvia Spirit SP90E 9 kW Sauna Heater
Black Spirit SP90E electric sauna heater, heater temperature sensor, wall mounting bracket, mounting screws, and installation and operation manual.

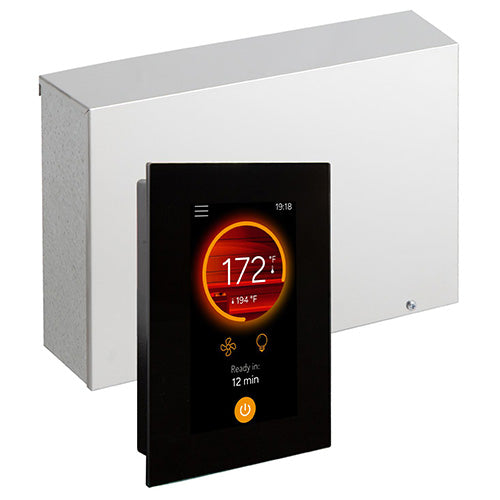

Harvia Fenix FX45 WiFi Digital Control System
Glass touchscreen control panel, power unit, data cable, temperature sensor, installation materials, and installation and operation manual.

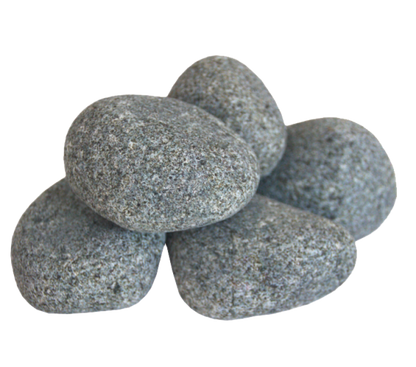

Harvia R-991 Rounded Olivine Diabase Sauna Stones
Four nominal 33 lb boxes of grey rounded sauna stones, approximately 132 lb supplied in total. Stone size is 2 to 4 inches (5–10 cm), suitable for the Spirit’s approximately 110 lb stone requirement.

Temperature Sensor Note
The heater and control components each include a temperature sensor. Install the heater supplied sensor specified in the Harvia Spirit installation instructions.

Installation Required
The heater, control system and stones are supplied as components. Professional electrical installation, wall mounting and correct stone placement must be completed before use. A protective heater fence is required and is not included in this three component package. Confirm whether a suitable fence is provided with your sauna or must be purchased separately.

No Additional Shipping When Purchased with a Sauna
When this heater package is purchased with a sauna on the same order, no additional heater shipping charge applies. Any applicable shipping charge for the sauna remains unchanged.

$495 Flat Rate Shipping When Purchased Separately
A flat shipping charge of $495 applies when this heater package is purchased without a sauna. Heater packages ordered separately or added through a later order do not qualify for the same order shipping benefit.

Delivery Area
Shipping is available within the contiguous United States only. We do not ship to Alaska, Hawaii, U.S. territories or international destinations.

Installation Requirements
This 9 kW heater package is designed for 240 V, single phase residential installations. The heater must be wall mounted and permanently wired by an authorized, qualified electrician in accordance with Harvia’s instructions and applicable electrical codes. It is not a plug in appliance.

Protective Fence & Safety
A protective heater fence is required and is not included in this three component package. Confirm whether a suitable fence is provided with your sauna or must be purchased separately. Use the supplied mounting bracket and maintain the clearances shown in the Spirit manual. Verify mounting support and sauna ventilation before installation.

Fenix Control & Temperature Sensor
The Fenix control panel may be installed in an approved position inside or outside the sauna. Its separate power unit must be installed outside the sauna according to the control manual. Both the heater and control include sensors; use the temperature sensor supplied with the Spirit heater and follow the heater’s placement instructions.

Correct Stone Placement
Rinse the rounded stones before placing them individually in the heater. Follow Harvia’s loading instructions, preserve airflow, cover the heating elements appropriately and keep the integrated safety device free to move. Approximately 132 lb of stones is supplied for the heater’s approximately 110 lb requirement. Retain suitable unused stones for future replacement.

Professional Installation
Read the heater and control manuals before installation. Final circuit design, field wiring, sensor placement, clearances and safety checks must be determined for the specific sauna installation. Retain proof of professional electrical installation for warranty purposes.

Harvia Limited Warranty
Harvia’s current limited warranty provides two years of residential coverage for the heater and two years for the control unit, subject to its terms and conditions.

Registered Electric Heater
Eligible residential electric heaters receive one additional year of warranty coverage when properly registered with Harvia within 30 days of purchase, for up to three years in total. The registration extension applies to the heater.

Warranty Requirements
Coverage requires proper installation, use and maintenance. Sauna stones and normal wear are excluded as described in the full warranty terms.

Manuals & Documents

Harvia Spirit Installation & Operation Manual

Harvia Spirit SP90E Data Sheet

Harvia Fenix FX45 Installation & Operation Manual

Harvia Limited Warranty
